Full Hydraulic Drive Aquatic Weed Harvester with Paddle Wheel Propulsion and Modular Design for Efficient Waterway Cleaning
| Place of Origin | china |
|---|---|
| Brand Name | keda |
| Certification | ce/iso |
| Minimum Order Quantity | 1 |
| Price | 26220 |
| Delivery Time | 60 |
| Supply Ability | 60 |
Product Details
| Full Size | 10*4.4*1.8m | 12.5*4.4*2.5m | 17*4.5*4m |
|---|
Product Description

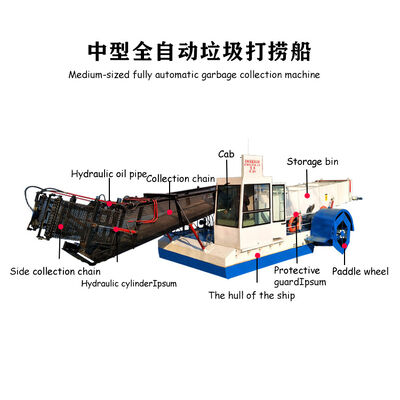

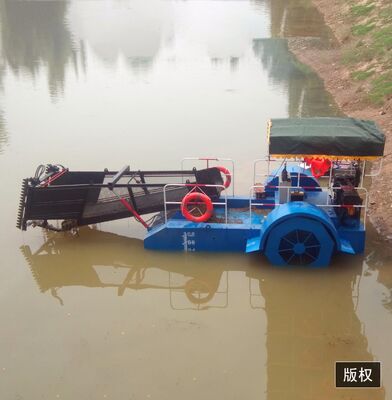

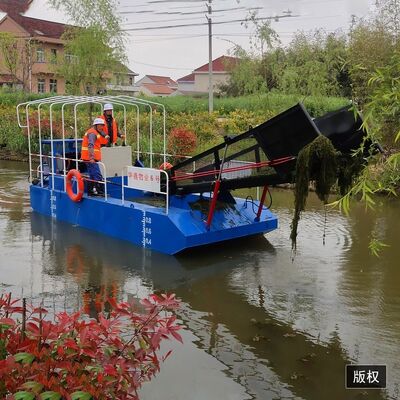

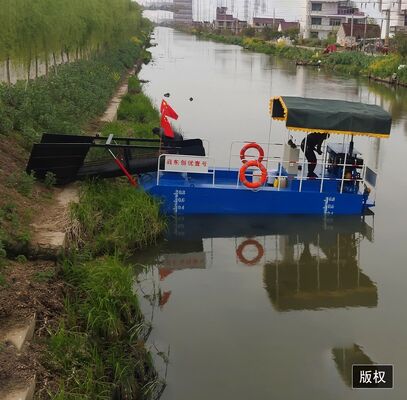

This machine is a fully automatic aquatic weed harvesting boat, which can be used to remove aquatic weed and floating garbage in rivers, lakes and oceans. This machine adopts full hydraulic drive, which is highly efficient, energy-saving and not easy to be damaged. The operation is simple and only one operator is required.

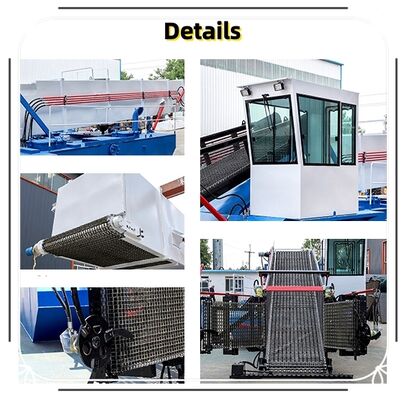

Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
The machine is driven by paddle wheel instead of the screw propeller, which can make sure the wheel is not entangled by the underwater weed. The system is perfectly optimized so that the machine can work efficiently.
Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
The machine is driven by paddle wheel instead of the screw propeller, which can make sure the wheel is not entangled by the underwater weed. The system is perfectly optimized so that the machine can work efficiently.
|
No
|
Item
|
KD-WH100
|
KD-WH150
|
KD-WH200
|
|
1
|
Full Size
|
10*4.4*1.8m
|
12.5*4.4*2.5m
|
17*4.5*4
|
|
2
|
Empty Draft/Full Draft
|
0.4m/0.6m
|
0.4m/0.6m
|
0.5m/0.7m
|
|
3
|
Mowing Width
|
2.2m
|
2.5m
|
3m
|
|
4
|
Mowing Depth
|
0.8m
|
0.8m
|
0.8m
|
|
5
|
Discharging Height
|
2m
|
2.5m
|
3m
|
|
6
|
Storage Capacity
|
5m3
|
12m3
|
26m3
|
|
7
|
Speed
|
0-10km/h
|
0-20km/h
|
0-20km/h
|
|
8
|
Working Efficiency
|
200-2000m2/h
|
300-3000m2/h
|
500-5000m2/h
|
|
9
|
Power
|
45kw
|
56kw
|
70kw
|
|
10
|
Endurance
|
24h
|
24h
|
24h
|
Other product
Q1:Can your aquatic weed harvester be customized?
A1:Yes, our aquatic weed harvester can be customized.
Q2 : How to transport to our country?
A2 : Via sea, by containers.
Q3 : Will your technician come to our work site to install it?
A3 : Yes, our technician could go to your site to install it if you need.
Q4 : What certificates do you need?
A4 : Our certificates include ISO9001, ISO14001, ISO45001, CE, SGS, ZC, CCS, Patent certificates, and our company is high new technology company in Shandong province
Q5 : Could we go to visit your factory?
A5 : Yes, of course, welcome to visit our factory, many customers came to visit our factory every year.
