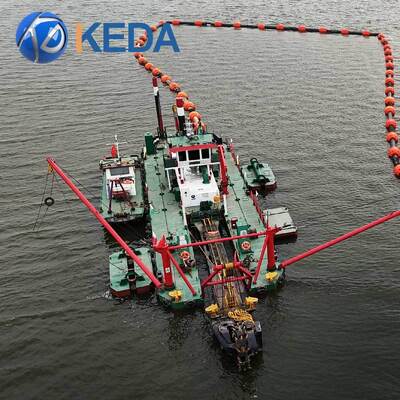

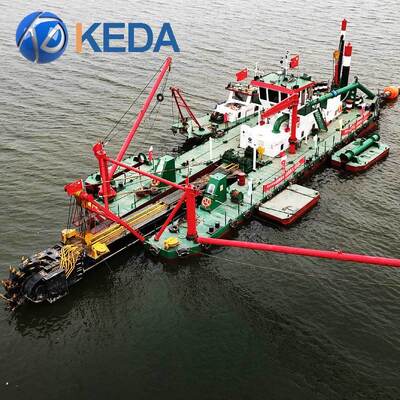

Keda CD-CSD250 Cutter Suction Dredger with 1100m3/h Workload 10m Dredging Depth and 350mm Suction Diameter
| Place of Origin | china |
|---|---|
| Brand Name | keda |
| Certification | CE/ISO |
| Minimum Order Quantity | 1 |
| Price | 66220 |
| Delivery Time | 60 |
| Supply Ability | 60 |
Product Details
| Workload | 1100m3/h |
|---|
Product Description
Keda cutter suction dredger are stationary dredgers stationary dismountable vessels equipped with a rotating cutter head. These powerful cutter suction dredgers are used in dredging rock, clay, silt and sand. During the dredging works, a spud is lowered in the seabed to secure the vessel.
The cutter suction dredger moves forward by means of the spud carriage. A cutter suction dredger cuts hard soil into fragments with a rotating cutter head. The cut material together with a large quantity of water is drawn into the suction mouth.
The material is sucked up by dredge pumps and discharged to a deposit area through pipelines across sea and land. In some cases, split hopper barges moored alongside the cutter suction dredger transport the soil to the deposit area to unload it there.
Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.
Details Images
1.Dredger Hull
Name: Dredger Hull
Photon material: Ship steel plate
Structure: Can be dismantle and assemble at working site
Hull quantity: two side hulls and one main hull
2. Power System
Name: Diesel Engine
Brand: World famous CUMMINS brand Weichai brand or as required
Power: 60-2000Kw
Function: Supply power to the dredger
3. Marine Gear Box
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
4. Sand Pump
Pump Flow: 100-5000m3/h
Sand output: 40-1500m3/h
Material: High chromium alloy Super wearing-resistant
Discharge Distance: 100-2000m
Pump Sealing: Packing seal
5. Hydraulic System
Cutter head hydraulic system
Spud hydraulic system
Winch hydraulic system
Hydraulic pump
Hydraulic oil tank and pipes

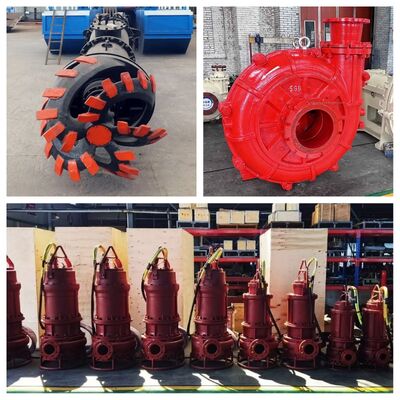

6. Cutter Head
Drive type: Hydraulic drive
Teeth type: Replaceable alloy teeth
Cutter blade material: 16Mn
Cutter teeth quantity: Multi teeth
