20m Life Head Mini Portable Dredger 300KG 33m3/h Water Flow for Gold Mining
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $3,000/sets >=1 sets |
| Packaging Details | In containers or as required. |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Core Components | Engine, Gearbox, Pump, Hydraulic Winch | Type | Mini Gold Dredger |
| Power Type | Diesel | Dredging Depth | 1.5 M |
| Draught | 30 Cm | Dimension(L*W*H) | 2.3*1.5*1 |
| Weight | 300 KG | Warranty | 1 Year |
| Water Flow | 33 Sqm/h | Work Site | Port/River/ Lake/ Sea/ Lagune/ Beach/ Harbor/ Dam |
| Usage | Mining, Gold Dredging, Gold Screening | Cutter Head Dia | 550mm |
| Total Power | 5hp | Inlet/Outlet Di | 50mm |
| Life Head | 20m | Voltage | 220V/380V |
| Applicable Industries | Building Material Shops, Farms, Construction Works | Showroom Location | None |
| Marketing Type | Hot Product 2019 | Warranty Of Core Components | 1 Year |
| Condition | New | ||
| Highlight | 20m Life Head Portable Dredger,300KG Weight Gold Mining Dredger,33m3/h Water Flow Gold Dredger |
||
Product Description

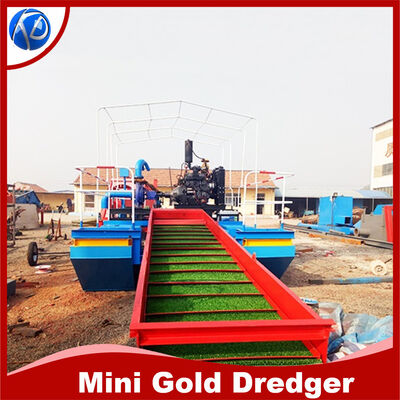

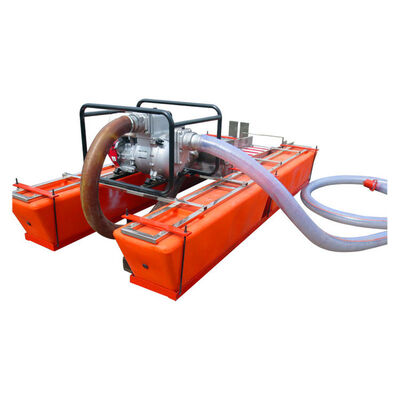

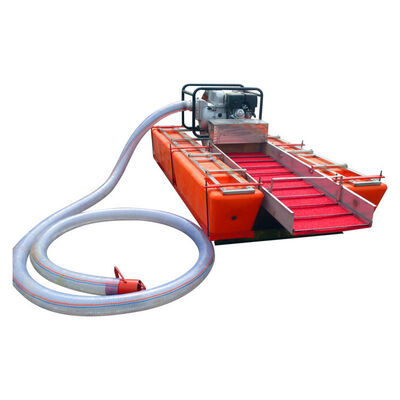

Life Head 20m Mini Gold Dredger for Portable Gold Washing
Our mini gold dredger features a gold chute for high recovery rate, powered by a reliable engine with pump. The float is constructed from high-strength, lightweight plastic. Compact in size and easy to transport, this dredger is ideal for alluvial gold mining in small river channels.
Technical Specifications
| Model | QFT3-2 | QFT4-3 | QFT5-3 |
|---|---|---|---|
| Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
| Diesel Engine | |||
| Model | RZ170F | RZ178F | RZ186FA |
| Power | 5hp | 7hp | 12hp |
| Rotate Speed | 3600rpm | 3600rpm | 3600rpm |
| Fuel Consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
| Fuel Capacity | 2.65L | 3.3L | 5.5L |
| Pump | |||
| Quantity | 1 set | 1 set | 2 sets |
| Dimension | 550*450*450mm | 550*470*450mm | 550*500*480mm |
| Pump Diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Water Flow | 33m³/h | 60m³/h | 80m³/h |
| Head | 30m | 30m | 25m |
| Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
| Work Capacity | 5m³/h | 8m³/h | 13m³/h |
| Gold Chute | |||
| Dimension | 400*1500mm | 500*1700mm | 500*1700mm |
| Features | With gold felt | ||
| Float | |||
| Dimension | 1600*395*370 | ||
| Suction Pipe | 3inch | 4inch | 5inch |
Key Features
- Portable design: Compact size for easy operation, maintenance, transport and assembly - ideal for personal gold mining in small river channels.
- Global popularity: Exported to over 15 countries including Ghana, Philippines, Vietnam, Russia, and North Korea.
- High efficiency: Equipped with gold chute and carpet for superior recovery rates.
- Cost-effective: Delivers high efficiency with low operational costs for maximum profitability.
- Durable construction: Stainless steel framework with high-strength, lightweight plastic floating body for durability and reliability.
- Custom solutions: Tailored designs available to match specific geological conditions, capacity requirements, and budget constraints.
Certifications
Testing Process
Packing & Loading
Our Service Commitment
- Long-term after-sale service agreements available
- Custom design solutions based on customer requirements
- On-site assembly and testing by our engineers
- Free repairs for quality issues during warranty period
- Comprehensive operation and maintenance training
- High-quality replacement parts at competitive prices
- Detailed customer records for long-term follow-up service
Company Profile
Qingzhou Keda Environment Protection Machinery Co., Ltd
Located in Qingzhou city, Shandong province, China with 22,000m² facility and over 100 staff. Conveniently situated near Qingdao sea port, Weifang airport and Qingdao International Airport.
Our company philosophy emphasizes honesty and customer-first service. We strive to deliver first-class quality and service through innovation and quality-focused development. Our products hold IS09001:2008 International Quality System Certification and General Ship Production Enterprise Technical Condition Evaluation Certificate issued by ZC.
Our dredging equipment has been exported to numerous countries including Philippines, Russia, Indonesia, North Korea, Surinam, Congo, Mali, Fiji, Bangladesh, Argentina, and Colombia.
