Compact Mini Gold Dredger 2300*1500*1000mm 2.65L Fuel Capacity 5hp
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $4,900/sets >=1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gravity Separator | Production Capacity | >85% |
|---|---|---|---|
| Voltage | 220/380v | Dimension(L*W*H) | 2300*1500*1000mm |
| Weight | 100 KG | Warranty | 1 Year |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Core Components | Gearbox | Key Selling Points | High Rigidity |
| Product Name | Gold Mining Machine | Diesel Rotate Speed | 3600r/m |
| Fuel Consumption | <=284g/kwh | Fuel Capacity | 2.65L |
| Water Flow | 33m3/h | Head | 30m |
| Dredging Depth | 0.5-0.8m | Applicable Industries | Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location | Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Thailand, Morocco, Colombia, Sri Lanka, Romania, South Africa | Condition | New |
| Marketing Type | Hot Product 2019 | Warranty Of Core Components | 1 Year |
| Highlight | 2300*1500*1000mm Gold Dredger,2.65L Fuel Capacity Gold Dredger,5hp Power Gold Mining Machine |
||
Product Description

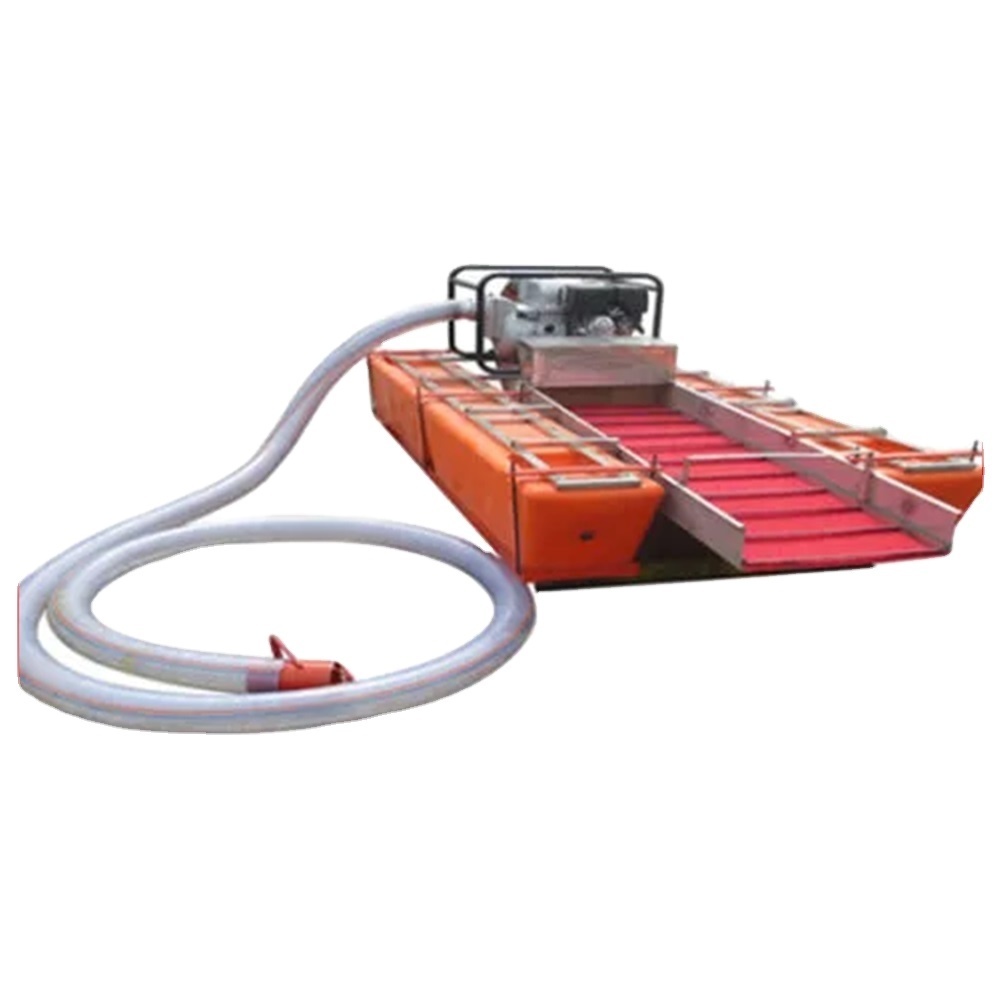

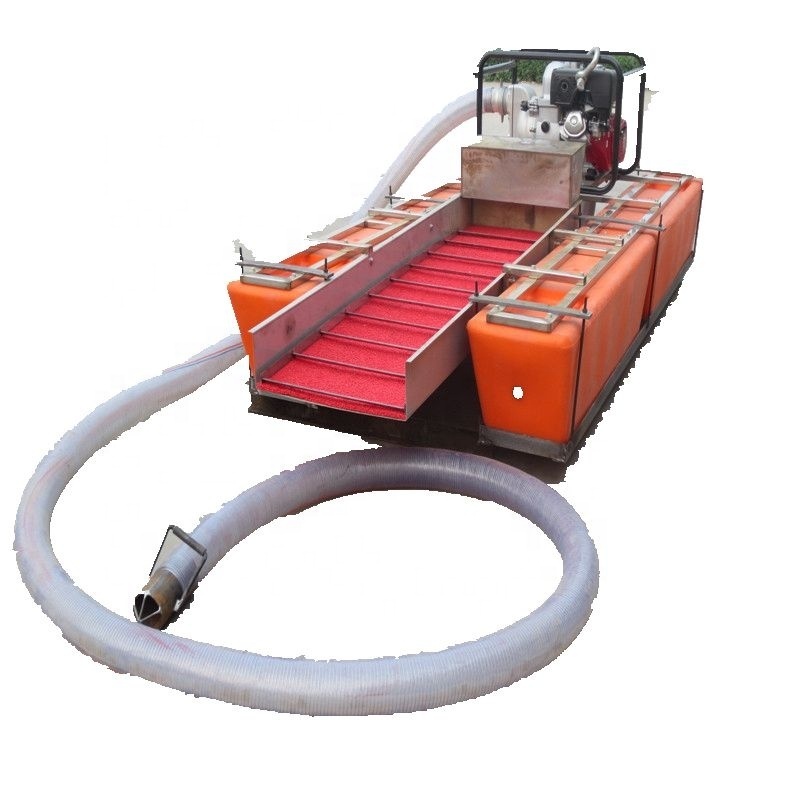

Water Flow 33m³/h 2300×1500×1000mm Keda 4 Inch 5 Inch Mini Gold Dredge Machine Diesel Honda Engine
Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump. The float is made of high-strength lightweight plastic. Compact size makes it easy to transport, ideal for gold mining in small river channels.
Technical Specifications
| Model | QFT3-2 | QFT4-3 | QFT5-3 |
|---|---|---|---|
| Dimension | 2300×1500×1000mm | 2500×1500×1000mm | 2500×1500×1000mm |
| Diesel Engine Model | RZ170F | RZ178F | RZ186FA |
| Power | 5hp | 7hp | 12hp |
| Rotate Speed | 3600rpm | 3600rpm | 3600rpm |
| Fuel Consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
| Fuel Capacity | 2.65L | 3.3L | 5.5L |
| Pump | 1 set | 1 set | 2 sets |
| Pump Dimension | 550×450×450mm | 550×470×450mm | 550×500×480mm |
| Pump Diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Water Flow | 33m³/h | 60m³/h | 80m³/h |
| Head | 30m | 30m | 25m |
| Dredging Depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
| Work Capacity | 5m³/h | 8m³/h | 13m³/h |
| Gold Chute Dimension | 400×1500mm | 500×1700mm | 500×1700mm |
| Gold Chute Feature | With gold felt | With gold felt | With gold felt |
| Float Dimension | 1600×395×370 | 1600×395×370 | 1600×395×370 |
| Suction Pipe | 3inch | 4inch | 5inch |
Key Features
- Portable design: Compact size for easy operation, maintenance, transport and assembly - ideal for personal gold mining in small river channels.
- Global popularity: Exported to over 15 countries including Ghana, Philippines, Vietnam, Russia, and North Korea.
- High efficiency: Equipped with gold chute and gold carpet for superior recovery rates.
- Cost-effective: Highly efficient operation with low operating costs for excellent return on investment.
- Durable construction: Stainless steel frame with high-strength lightweight plastic floats for durability and low failure rate.
- Custom solutions: Customized designs available based on geological conditions, capacity requirements, and budget.
Certifications
Quality Testing
Packing & Loading
Our Service Commitment
- Long-term after-sale service agreements available
- Customized designs based on customer requirements
- On-site assembly and testing by our engineers
- Free repairs for quality issues during warranty period
- Comprehensive operation and maintenance training
- High-quality replacement parts at competitive prices
- Detailed customer records for long-term follow-up service
Company Profile
Qingzhou Keda Environment Dredging Equipment Co., Ltd. is located in Qingzhou city, Shandong province, China with 22,000m² facility and over 100 employees. Conveniently located near Qingdao sea port, Weifang airport and Qingdao International Airport.
We hold ISO9001:2008 International Quality System Certification and General Ship Production Enterprise Technical Condition Evaluation Certificate. Our products have been exported to over 10 countries including Philippines, Russia, Indonesia, and North Korea.
We hold ISO9001:2008 International Quality System Certification and General Ship Production Enterprise Technical Condition Evaluation Certificate. Our products have been exported to over 10 countries including Philippines, Russia, Indonesia, and North Korea.
