Amphibious Multipurpose Dredger 50m Lift Head 300m3/H Working Capacity
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $22,000/sets >=1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Core Components | Engine, Gearbox, Motor, Bearing | Working Capacity | 300m³/h |
| Type | Amphibious Dredger | Power Type | Diesel |
| Dredging Depth | 4 M | Draught | 1 Inch |
| Dimension(L*W*H) | 7500x2250x3200mm | Weight | 5000 KG |
| Warranty | 1 Year | Bucket Capacity | 0.5m3 |
| Water Flow | 400m3 | Total Power | 194kw |
| Total Length Of Digging Arm | 6m | Diesel Engine Power | 194kw |
| Output Distance | 500m | Water Flow Of Suction Pump | 300m3/h |
| Lift Head | 50m | Cutter Head Dia. | 700mm |
| Total Length Of SPUD | 8m | ||
| Highlight | 50m Lift Head Amphibious Multipurpose Dredger,300m3/h Working Capacity Amphibious Dredger,0.5m3 Bucket Capacity Swamp Excavator |
||
Product Description
Amphibious Excavator with 500m Output Distance and Lift Head 50m Crawler Chain Pontoon Excavator
Product Overview

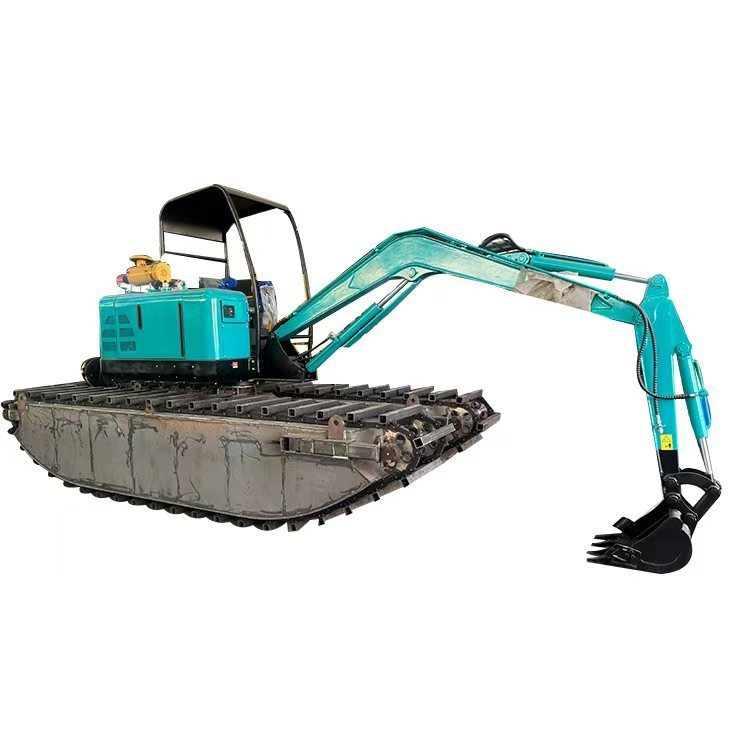

The Keda Custom Amphibious Excavator is a versatile machine designed for operation on land, swampy soft ground, and shallow water environments. Its innovative multihull pontoon structure and sealed box-shaped track shoes enable safe movement and operation on silt and water surfaces.
Key Features
- Interchangeable front attachments including gun head, reamer head, and bucket for versatile operation
- Advanced hydraulic system paired with efficient power system for compound operation actions
- Optimized design balances high efficiency with economic operation
- Enhanced operator convenience and comfort during extended work periods
Technical Specifications
| Main Engine | ||
|---|---|---|
| Power | 150kw | |
| Displacement | 6.7L | |
| Cylinder | 6 pieces | |
| Fuel Tank | 400L | |
| Hydraulic Tank | 220L | |
| Main Pontoon | ||
| Dimensions for one buoyancy | 8.5*15*1.9m | |
| Overall width of chassis | 4.6m | |
| Number of chains on each buoyancy tank | 2 rows | |
| Chain rail material | High-strength steel (785) | |
| Paint | Marine anti-corrosion | |
| Side Pontoon with SPUD | ||
| Dimensions for one buoyancy | 7.5*1.5*1.1m | |
| SPUD Length | 6m | |
| System | Full-hydraulic | |
| Motor | Volvo 250 (1 pair) | |
| Other Components | ||
| Arm | Standard configuration | |
| Basket Capacity | 0.8m³ | |
| Hydro-cylinder | 4 pieces | |

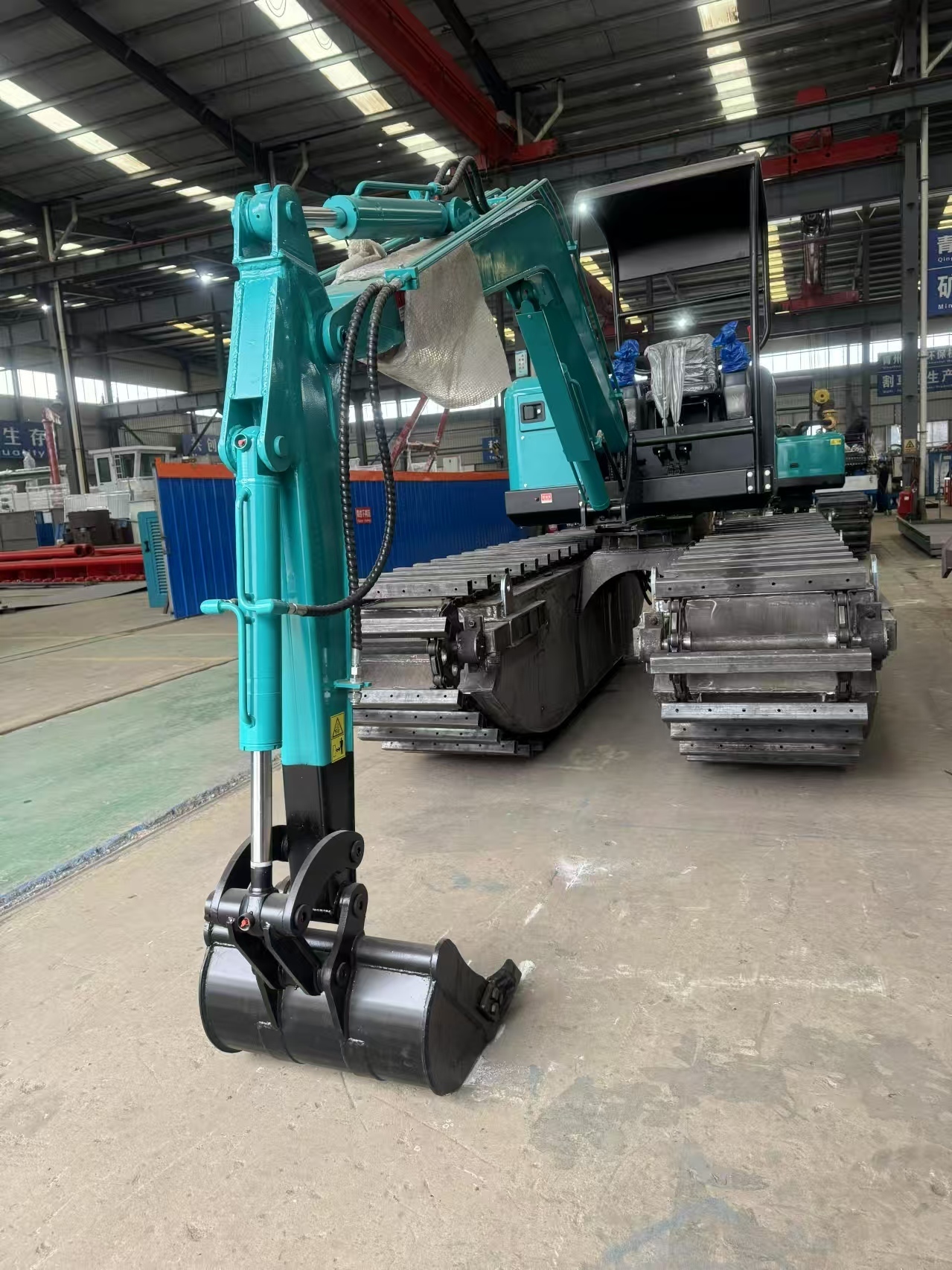

Detailed Images
Manufacturer Information
Qingzhou Keda Environment Protection Machinery Co., Ltd. is a high-tech enterprise based in Qingzhou City, Shandong Province, with over 30 national patents and more than 11 years of experience in designing and manufacturing environmental protection equipment.
Specializing in waters environmental protection equipment, KEDA operates in research & development, manufacturing, equipment assembly, and after-sales service. Our products have been exported to over 50 countries across Southeast Asia, East Asia, South Asia, South America, Oceania, Africa, and Eastern Europe.
KEDA is committed to technological innovation, quality manufacturing, and integrity in management, earning recognition from customers worldwide. We continue to strive for excellence in creating world-class water environmental protection equipment.
Certifications

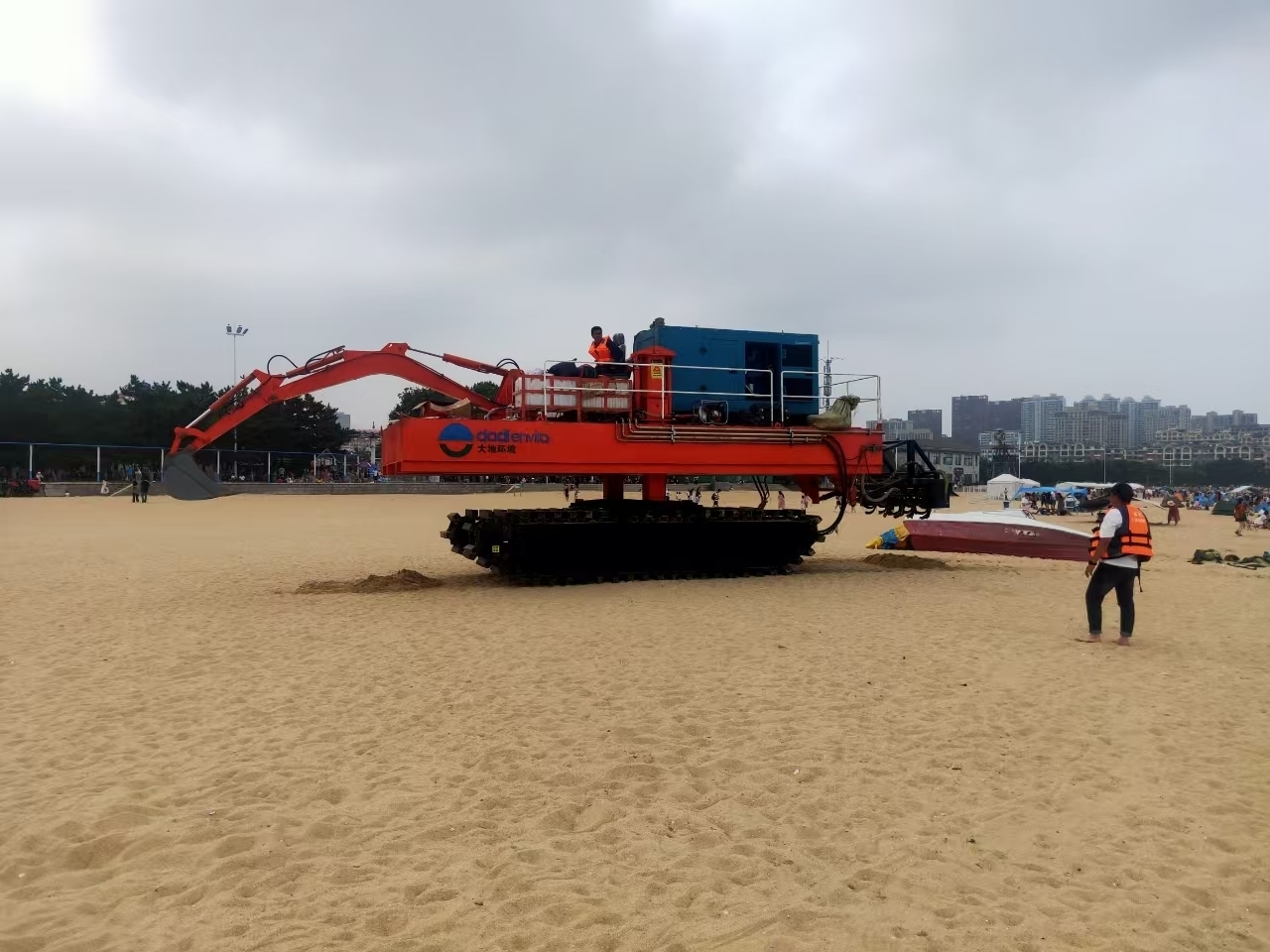

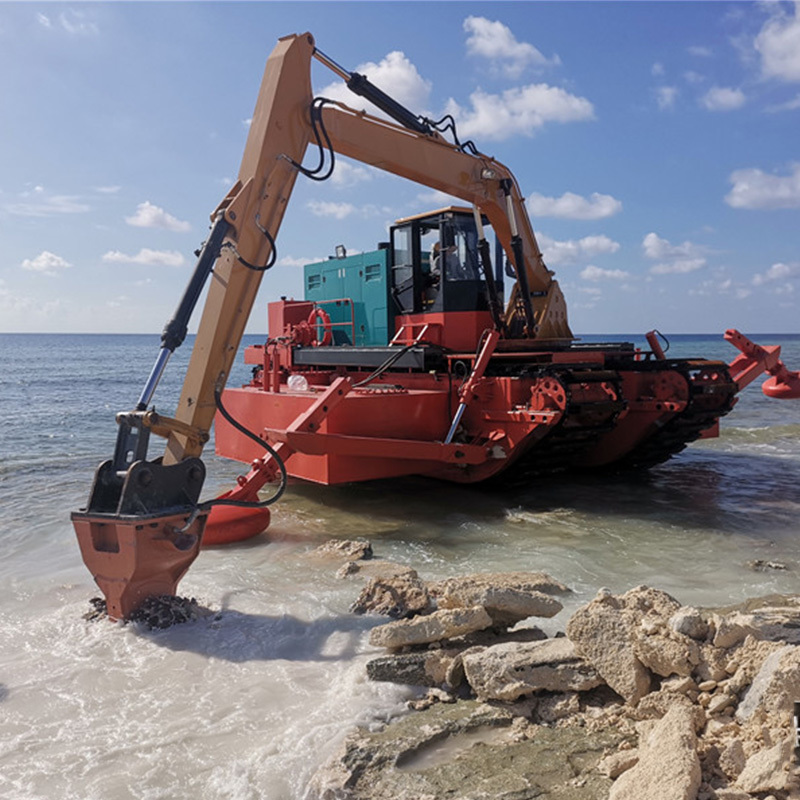

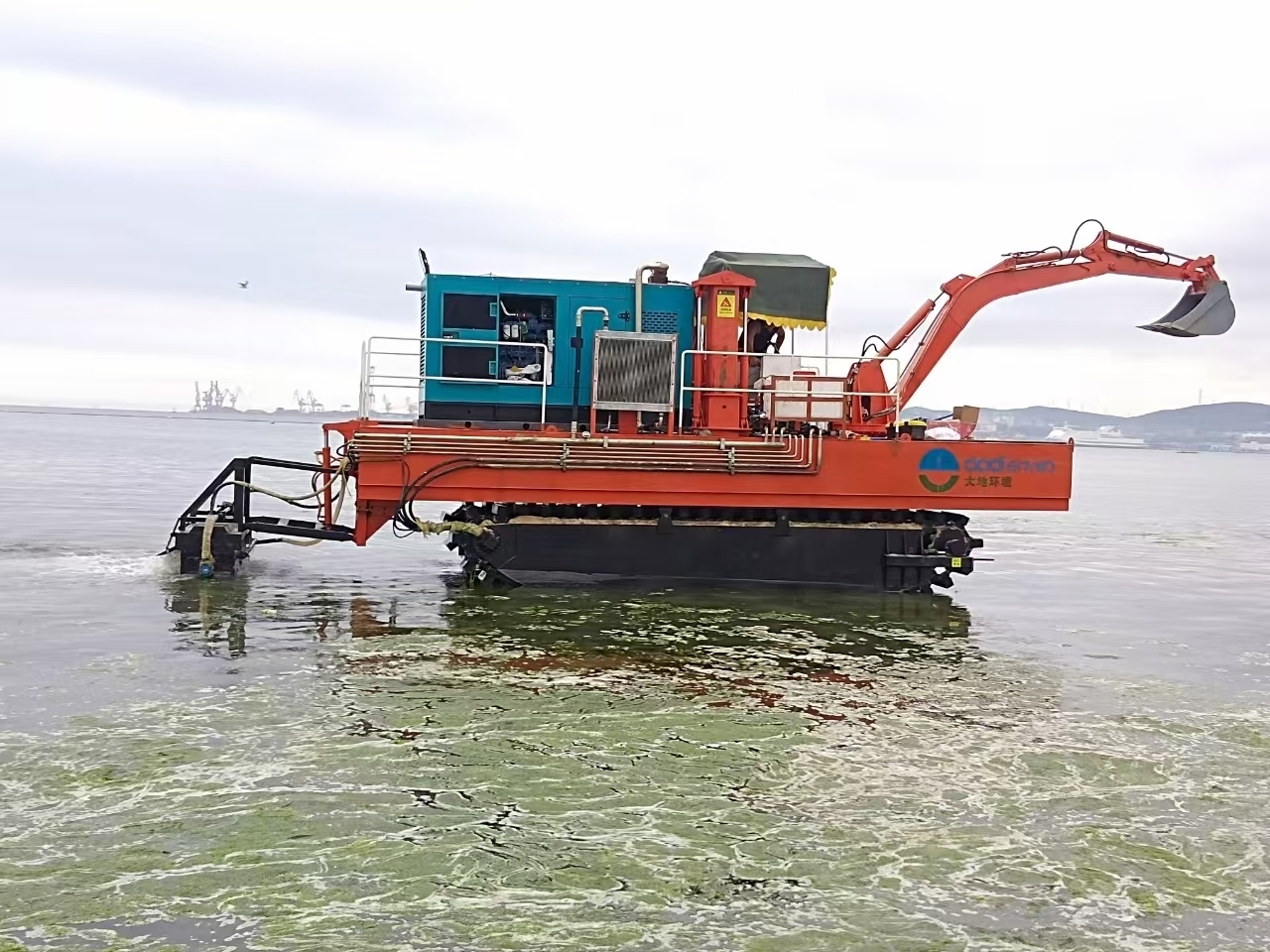

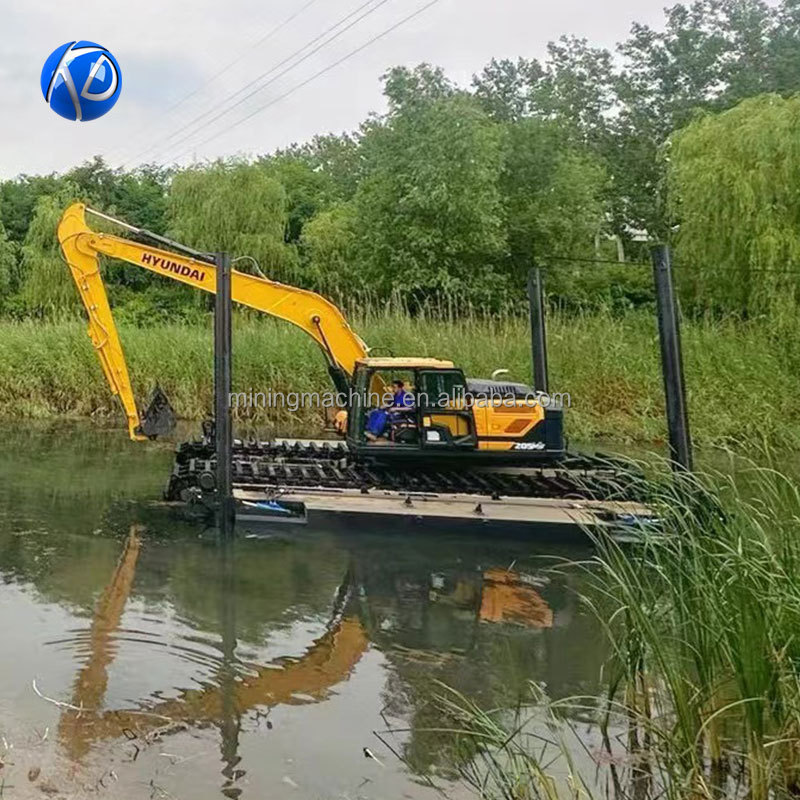

Project Cases
Frequently Asked Questions
Who are we?
We are a professional manufacturer of aquatic and amphibious equipment based in Shandong, China, established in 2011. Our product range includes dredgers, amphibious excavators, aquatic weed harvesters, and gold panning equipment.
How can we guarantee quality?
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure product quality.
What can you buy from us?
Our product offerings include dredgers, gold mining equipment, water weed harvesters, and sand production equipment.
Why should you buy from us?
We specialize in mineral processing equipment with patented gold washing technology, combining R&D, engineering design, production, installation, and after-sales service for complete solutions.
What services can we provide?
We accept various delivery terms (FOB, CFR, CIF, EXW, CIP), payment currencies (USD, EUR), and payment methods (T/T, L/C, Credit Card, Western Union, Cash). Our team communicates in English and Chinese.
