KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System

  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
  • KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System
Place of Origin China
Brand Name Keda
Certification CE/ISO
Model Number Amphibious Excavator
Minimum Order Quantity 1
Price 30272
Delivery Time 60
Payment Terms T/T
Supply Ability 60days
Product Details
Highlight

Multi-purpose Amphibious Excavator

,

Sealed Box-shaped Track Shoe Floating Crawler Excavator

,

Hydraulic System Multi-purpose Dredger
Leave a Message
Product Description

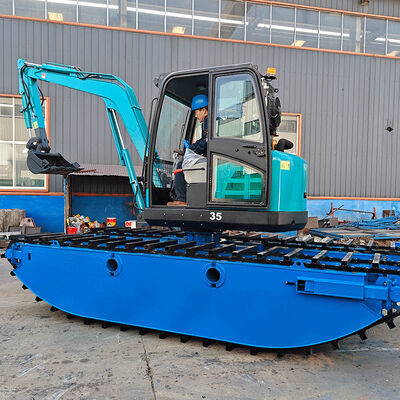

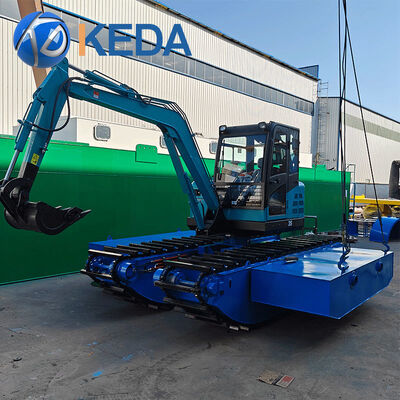

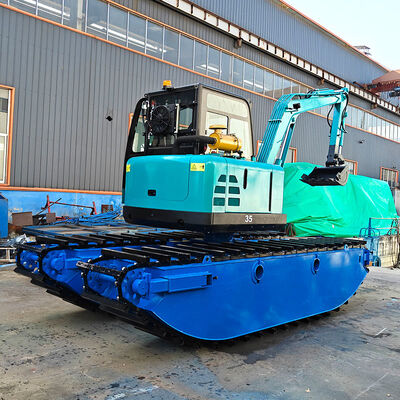

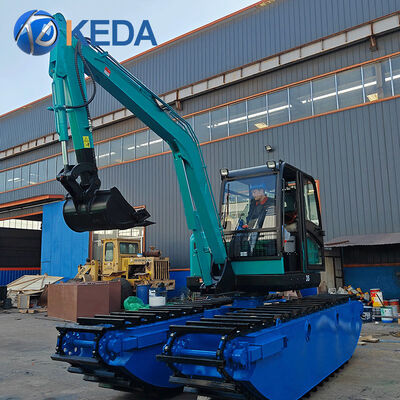

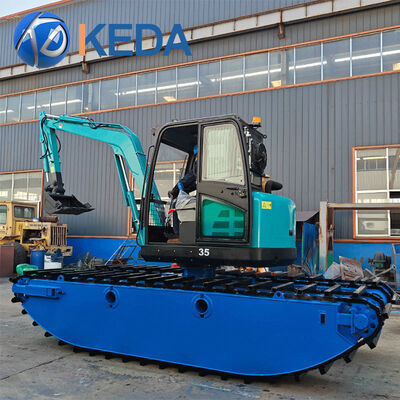

KEDA Multi-purpose Sand Marshland Amphibious Dredger Floating Crawler Backhoe Excavator
This custom amphibious excavator is engineered for versatile operation across land, swampy terrain, and shallow water environments. The innovative multihull pontoon structure with sealed box-shaped track shoes ensures safe mobility and operation on silt and water surfaces.
The front attachment system accommodates multiple tool configurations including gun heads, reamer heads, and buckets, enhancing work quality, digging efficiency, and operational convenience. Advanced hydraulic and power system integration enables compound operational movements while maintaining high efficiency and economic performance.
KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System 0 KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System 1
Technical Specifications
Pontoon Undercarriage System
Component Specification
Model JY200
Travel Motor Assembly DOOSANTM60VCx2
Pontoon & Track Shoe Material: Q355B Reinforced Steel
Thickness: Bottom 6mm, Side 4mm
Track Chains 3 track chains per pontoon
Chain Material 40Cr Hard-wearing Steel
Pontoon Dimensions Single: 10000mm x 1970mm x 1840mm
Connected: 10000mm x 5200mm x 1840mm
Anti-rust Technology Environmental shot blasting for extended service life
Color Grey
Pontoon Pressing Technology Enhanced integral strength, reduced weight, improved buoyancy
Side Pontoons with Spuds
Side Pontoon Dimensions: 7m x 1.5m x 1m (each)
Spud Length: 8m
Equipped with 2 hydraulic fully automatic spuds featuring integrated motor systems. All spud operations including dumping, rising, and lowering are controlled via oil cylinder motors with simple switch operation.
Manufacturer Information
Qingzhou Keda Mining Machine Co., Ltd.
A modern formal company specializing in mining and dredging equipment manufacturing. Our comprehensive product range includes iron selection equipment, dredgers, dredging systems, sand washing and making equipment, gold panning equipment, magnetic separators, crushers, and over a hundred specialized products.
We provide custom design and production services tailored to specific customer requirements and geographical conditions. As a large-scale mineral processing equipment manufacturer, we offer complete solutions including research and development, engineering design, production, installation, commissioning, and after-sales service.
With independent design and R&D capabilities and dozens of intellectual property certificates, our products are distributed worldwide.
KEDA Multi-purpose Amphibious Excavator with Sealed Box-shaped Track Shoe and Advanced Hydraulic System 2
