Gold Mining Bucket Chain Dredger 500m Dredging Depth 60cm Draught
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $70,000/sets >=1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Core Components | Engine, Pump | Type | Bucket Dredger |
| Power Type | Diesel | Dredging Depth | 500 M |
| Draught | 60 Cm | Weight | 5000 KG |
| Warranty | 1 Year | Name | Bucket Chain Gold Dredge |
| Application | Gold Mining | Color | Customer's Request |
| Operation System | Hydraulic System | Work Site | River Lake Port Coastal Area |
| Applicable Industries | Energy & Mining | Showroom Location | None |
| Marketing Type | New Product 2020 | Warranty Of Core Components | 1 Year |
| Condition | New | ||
| Highlight | 500m Dredging Depth Gold Dredger,60cm Draught Gold Mining Dredger,Gold Mining Bucket Chain Dredger |
||
Product Description

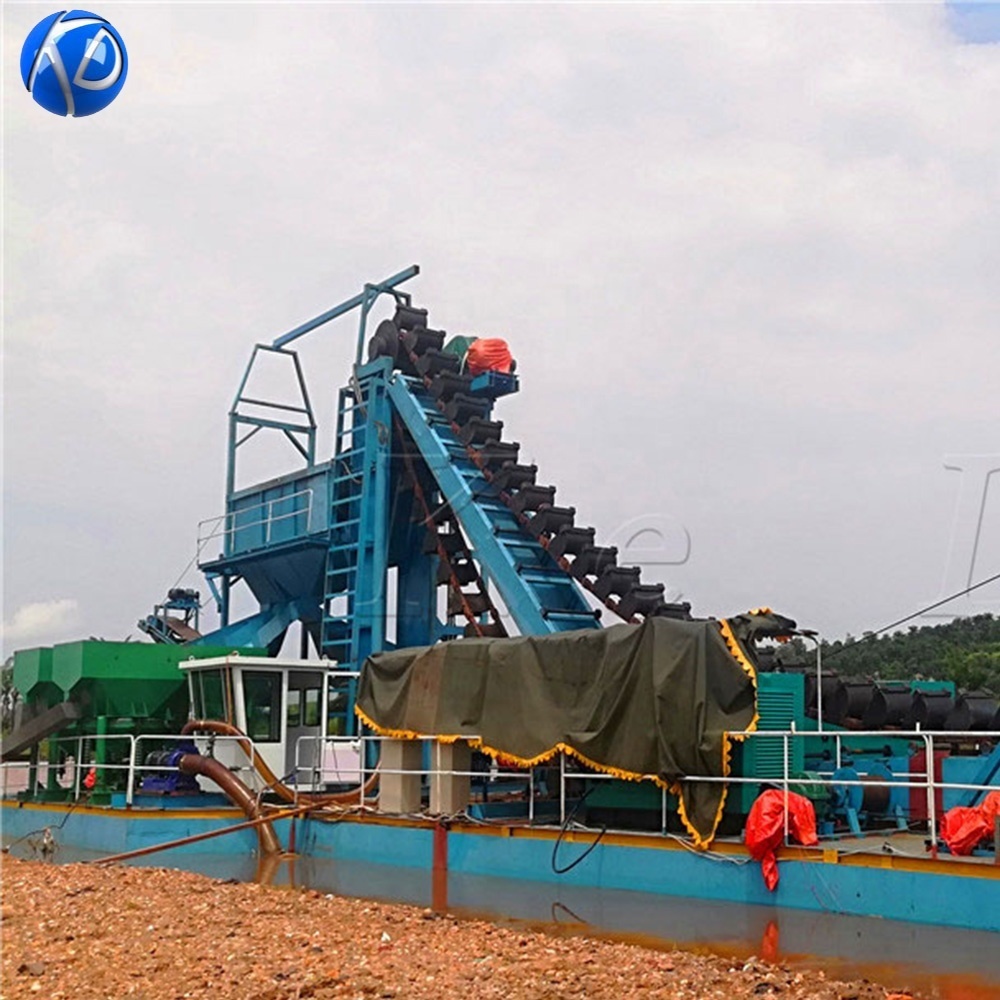

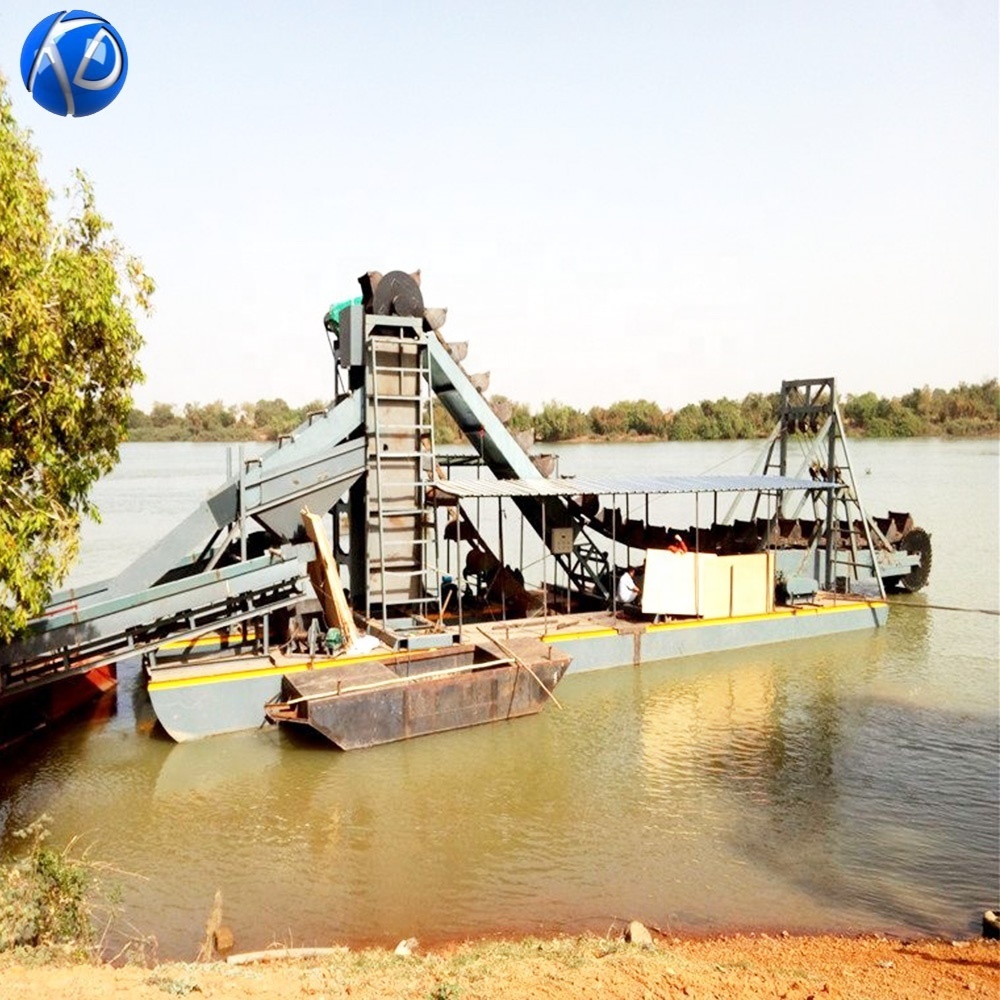

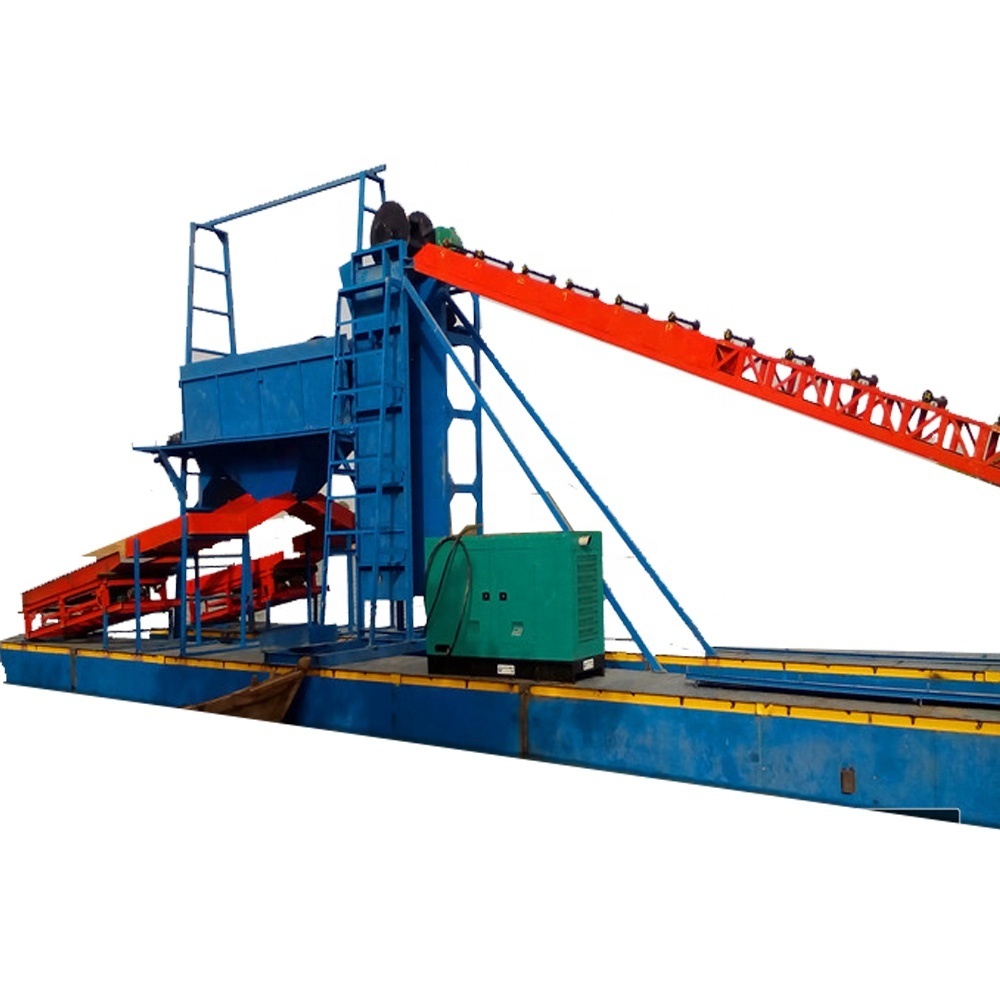

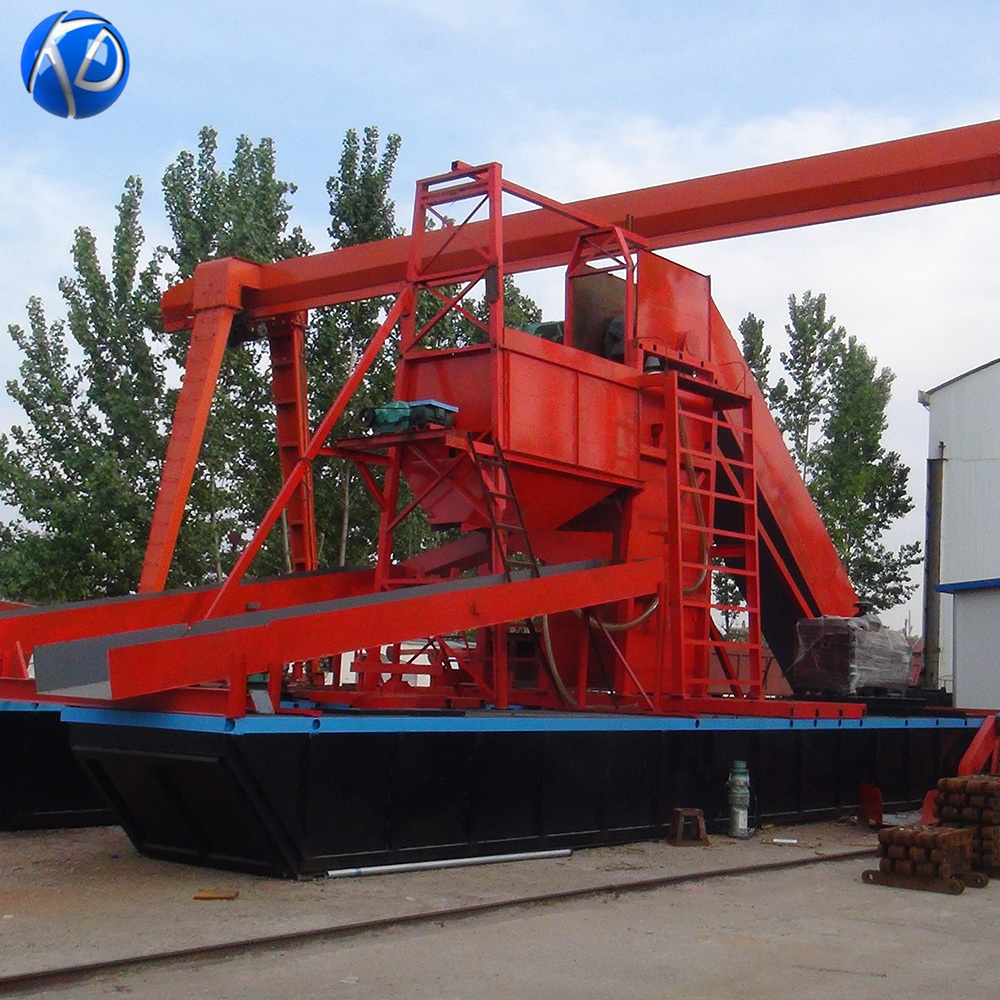

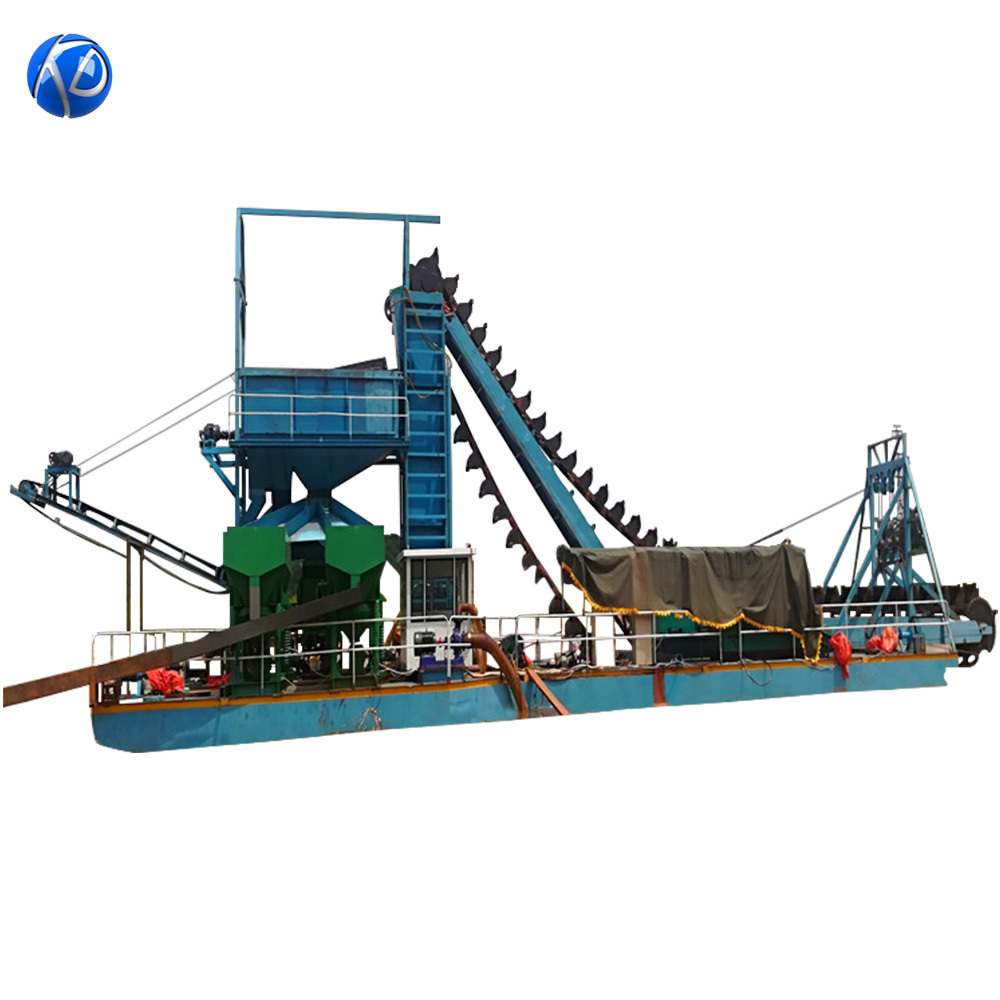

Gold Extraction Equipment Bucket Dredger
Core Components: Pump and Engine Draught 60 cm
Product Application
Our Chain Bucket Dredger is a professional sand mining machinery that performs extraction, screening, cleaning, and grading simultaneously. Equipped with diesel or electric power, it produces clean gravel products in a single operation and can be paired with pebble crushers for secondary processing.
Key Advantages
- Excellent environmental adaptability with simple, maintenance-friendly structure
- Ideal for sand extraction and river dredging operations
- Versatile applications including salt pond mining, offshore dredging, and channel development
- Reliable performance with long service life and low operational costs
- High daily output capacity (500-3000 cubic meters)
- Produces pure, construction-grade sand free from impurities
Technical Specifications
| Model | KD-1 | KD-2 | KD-3 | KD-4 | KD-5 | KD-6 | KD-7 |
|---|---|---|---|---|---|---|---|
| Pontoon Dimensions (m) | |||||||
| Length A | 13 | 14 | 15 | 16 | 17 | 22 | 24 |
| Length B | 14 | 14.5 | 15.5 | 17 | 18 | 20 | 22 |
| Length C | 15.5 | 16 | 16.5 | 18 | 20 | 20 | 22 |
| Width A | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.8 | 1.8 |
| Width B | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.8 | 1.8 |
| Width C | 1.7 | 1.7 | 1.7 | 1.7 | 1.8 | 1.8 | 1.8 |
| Bucket (Pic) | 42-46 | 48-52 | 52-58 | 60-66 | 66-78 | 60-70 | 70-76 |
| Dredging Depth (m) | 4-4.8 | 4-6 | 4-7.5 | 4-10 | 4-12 | 8-14 | 8-16 |
| Output (m³/h) | 60-200 (adjustable) | ||||||
Component Details
Engine Parts
Brand: Honda, Kipor, KOHLER etc. Origin: Germany
World-class engines and pumps providing strong, reliable power.
Dig Parts
Brand: KEDA
High manganese steel casting with reinforced wheel outer rings for extended durability.
Bucket Parts
Origin: Germany
Wear-resistant materials with complimentary spare parts included.
Hull Parts
Brand: KEDA
Square transverse skeleton structure welded from thickened ship steel.
Our Services
Pre-Sales Service
- Expert model selection based on your requirements
- Custom product design and processing solutions
- On-site evaluation by our engineers for optimal configuration
After-Sales Service
- On-site installation, adjustment and testing
- Comprehensive operator training programs
- Engineers remain until full operational status is achieved
- 24/7 technical support available
Packaging & Delivery
| Packaging Details |
|---|
| Size: 12 (L) * 2.5 (W) * 3 (D) |
| Weight: 5 T |
| Standard container packaging with optional fumigation for European exports. Custom packaging solutions available. |
About Our Company
Qingzhou Keda Environment Protection Machinery Co., LTD is an ISO9001:2008 certified manufacturer specializing in mining equipment since 2002. Our 20,000 square meter facility employs 120 professionals including engineers and technicians, delivering high-quality, patented solutions with competitive pricing.
Frequently Asked Questions
1) I never used this kind of machine, is it easy to operate?
Our engineers provide complete installation guidance and training, including English manuals and instructional videos.
2) What should I do if the machine has any problems after I order it?
We provide free replacement parts during warranty period and lifetime technical support via phone and Skype.
