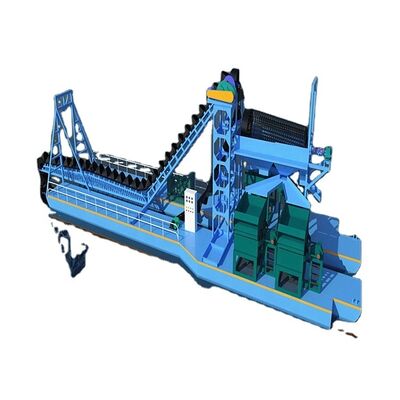

Diesel Bucket Chain Gold Mining Dredger with 24m Dredging Depth 200cm Draught
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $250,000/sets >=1 sets |
| Packaging Details | In container or as customer's request |
| Supply Ability | 15 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Not Available |
|---|---|---|---|
| Core Components | Engine, Gearbox | Type | Bucket Dredger |
| Power Type | Diesel | Dredging Depth | 16 M, 24m |
| Draught | 200 Cm | Dimension(L*W*H) | 18*6*1.18m |
| Weight | 8000 KG | Warranty | One Year |
| Processing Capacity | 50-300m3/h | Dredging Depth (m) | 5-25m |
| Cyclone Type | Hydrocyclone | Drive Mode | Anchoring |
| Usage | Sand Dredging,gold Dredging | Application | River Training Boat |
| Applicable Industries | Energy & Mining | Showroom Location | None |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Condition | New | Port | Qingdao Port |
| Highlight | 24m Dredging Depth Gold Bucket Dredger,200cm Draught Gold Dredge Machine,Bucket Chain Gold Mining Dredger |
||
Product Description
River Training Boat Gold Mining Dredger Machine for Sand Dredging Bucket Chain Gold Dredge
Product Description
Gold dredger with Chain and bucket/Gold mining dredger
Key Features
- Constructed with two or three pontoons for installing various equipment including operating cabin and pump cabin
- Includes dredging bucket, chain, underwater big arm, quadrangle wheels, active power, main reducer, and main frame for surface mining operations
- Equipped with sand trommel screen, gold washing machine, pump, and gold selecting chute or centrifugal concentration machine
- Features conveyor belt, chute, motor, and reducer for discharging waste gravel and tailings
- Includes gantry, arm lifting winch, anchor winch, and sliding winch for lifting operations and mooring
- Powered by diesel engine and electronic generator sets with distribution box for lighting and operational electricity
Technical Specifications
| Model | KD-1 | KD-2 | KD-3 | KD-4 | KD-5 | KD-6 | KD-7 |
|---|---|---|---|---|---|---|---|
| Pontoon Length (m) | |||||||
| A | 13m | 14m | 15m | 16m | 17m | 22m | 24m |
| B | 14m | 14.5m | 15.5m | 17m | 18m | 20m | 22m |
| C | 15.5m | 16m | 16.5m | 18m | 20m | 20m | 22m |
| Width (m) | |||||||
| A | 1.5m | 1.5m | 1.5m | 1.5m | 1.7m | 1.8m | 1.8m |
| B | 1.5m | 1.5m | 1.5m | 1.5m | 1.7m | 1.8m | 1.8m |
| C | 1.7m | 1.7m | 1.7m | 1.7m | 1.8m | 1.8m | 1.8m |
| Bucket (Pic) | 42-46 | 48-52 | 52-58 | 60-66 | 66-78 | 60-70 | 70-76 |
| Dredging depth (m) | 4m-4.8m | 4m-6m | 4m-7.5m | 4m-10m | 4m-12m | 8m-14m | 8m-16m |
| Output m³/h | 60-100m³ (adjustable) | ||||||
| Power | 1105-1100 | 1110-1100 | 1115-1100 | 1110-1100 | 1115-1100 | 1100-4100 | |

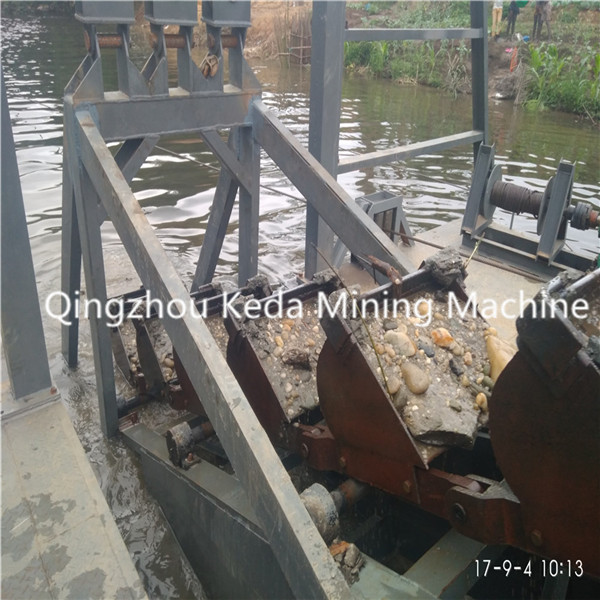

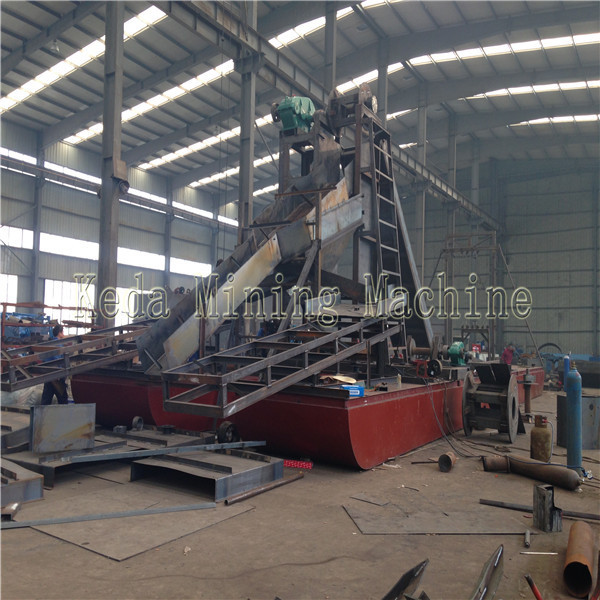

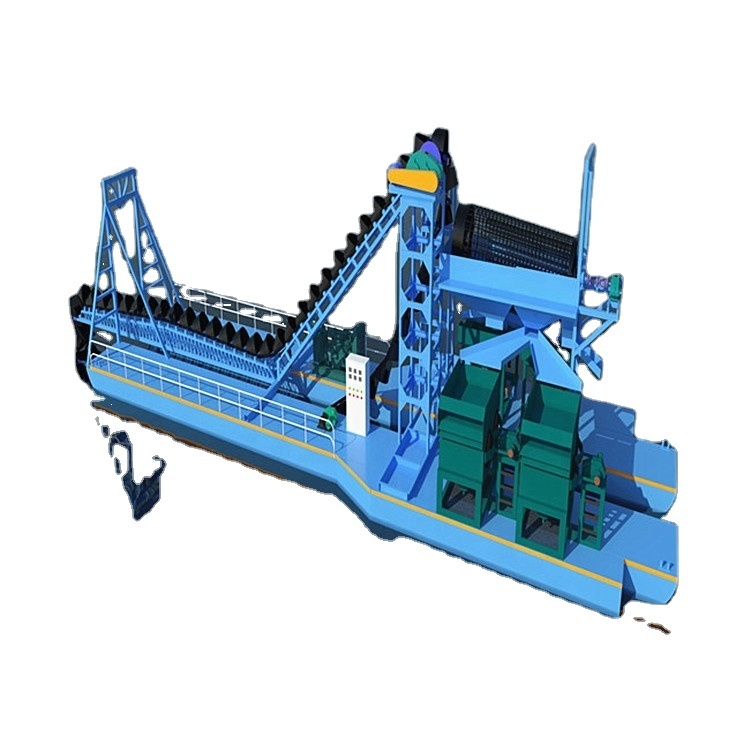

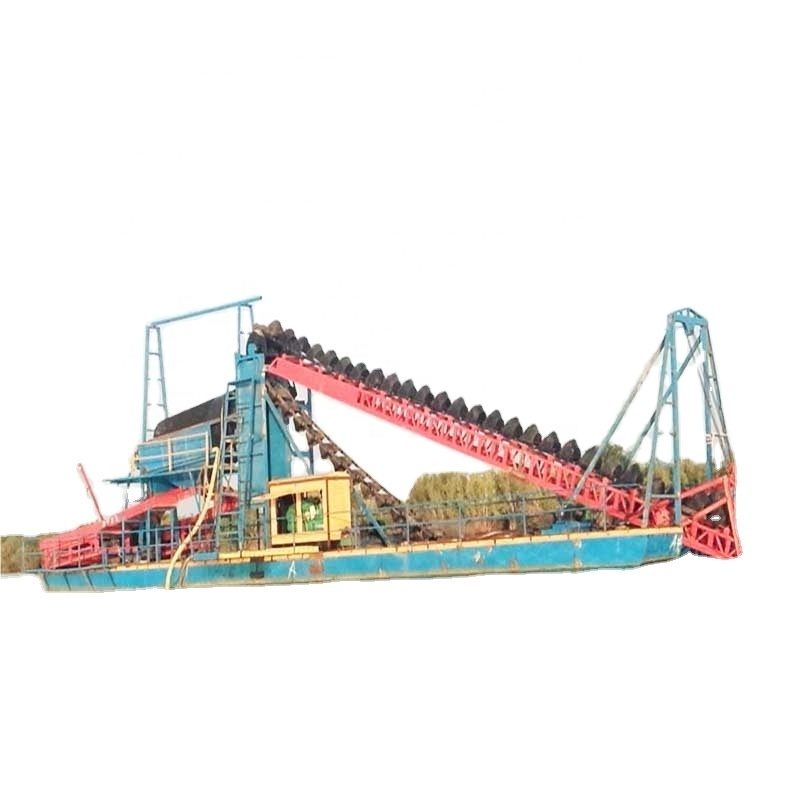

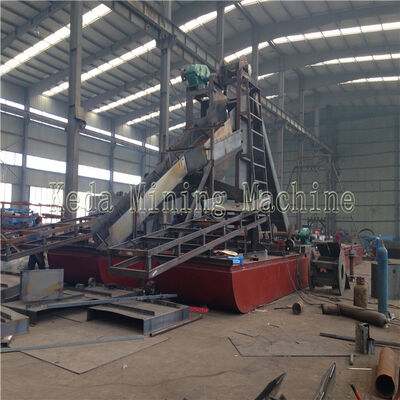

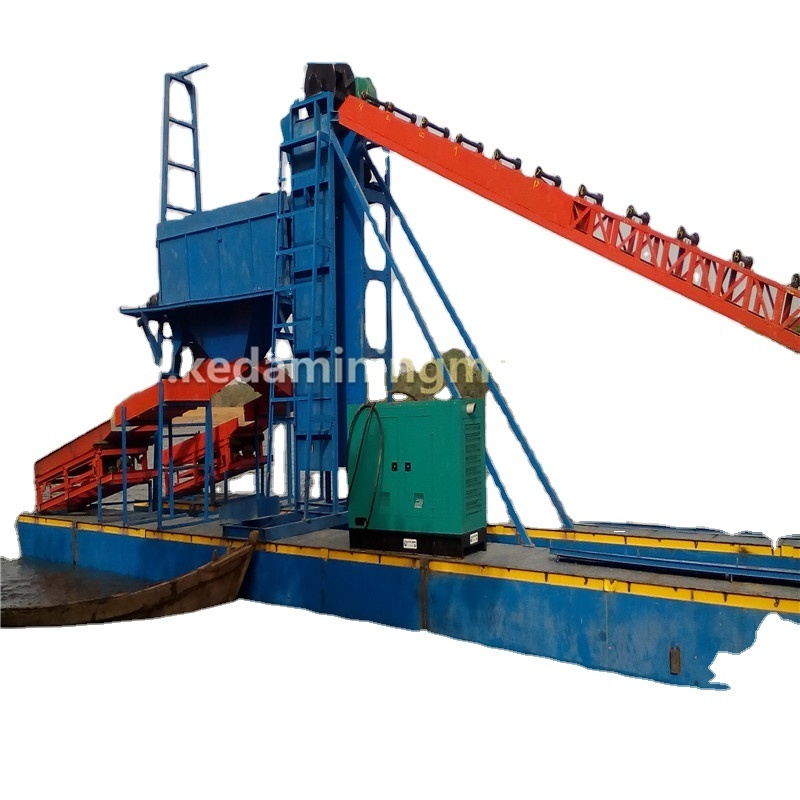

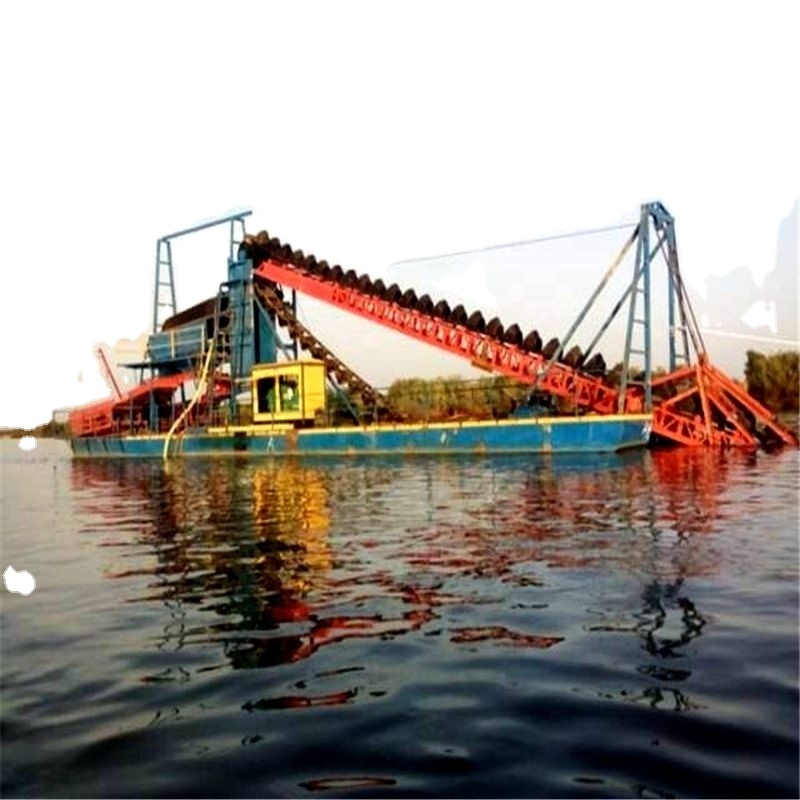

Product Images
Packaging & Shipping
Our Services
Pre-sale services: We provide prophase planning, process flow design, and manufacturer equipment according to your specific requirements
Sale services: Overseas technicians available for installation guidance, operator training, and project acceptance
After-sale services: One-year warranty with spare parts inventory for immediate replacement needs
Company Information
Qingzhou Keda Mining Machine Co., Ltd is a professional manufacturer offering:
- Competitive pricing
- Factory visits and machine testing available
- Timely machine repairs
- Guaranteed on-time delivery
Our Certifications
Frequently Asked Questions
What information should customers provide for an efficient quotation?
- Type of mining (rock stone or sand)
- General particle size (mm) of raw ore (if rock stone)
- Planned handling capacity (tons per hour)
- Element composition of raw ore and percentage of each mineral
