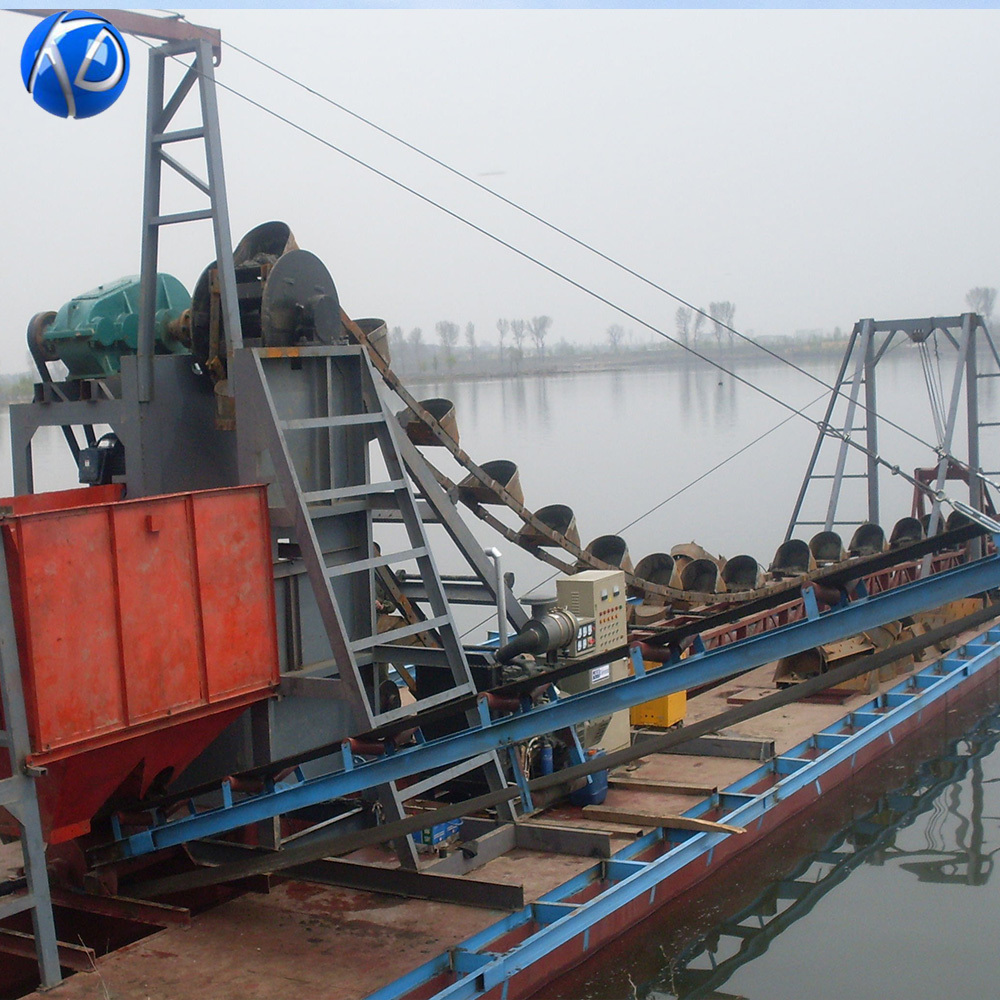

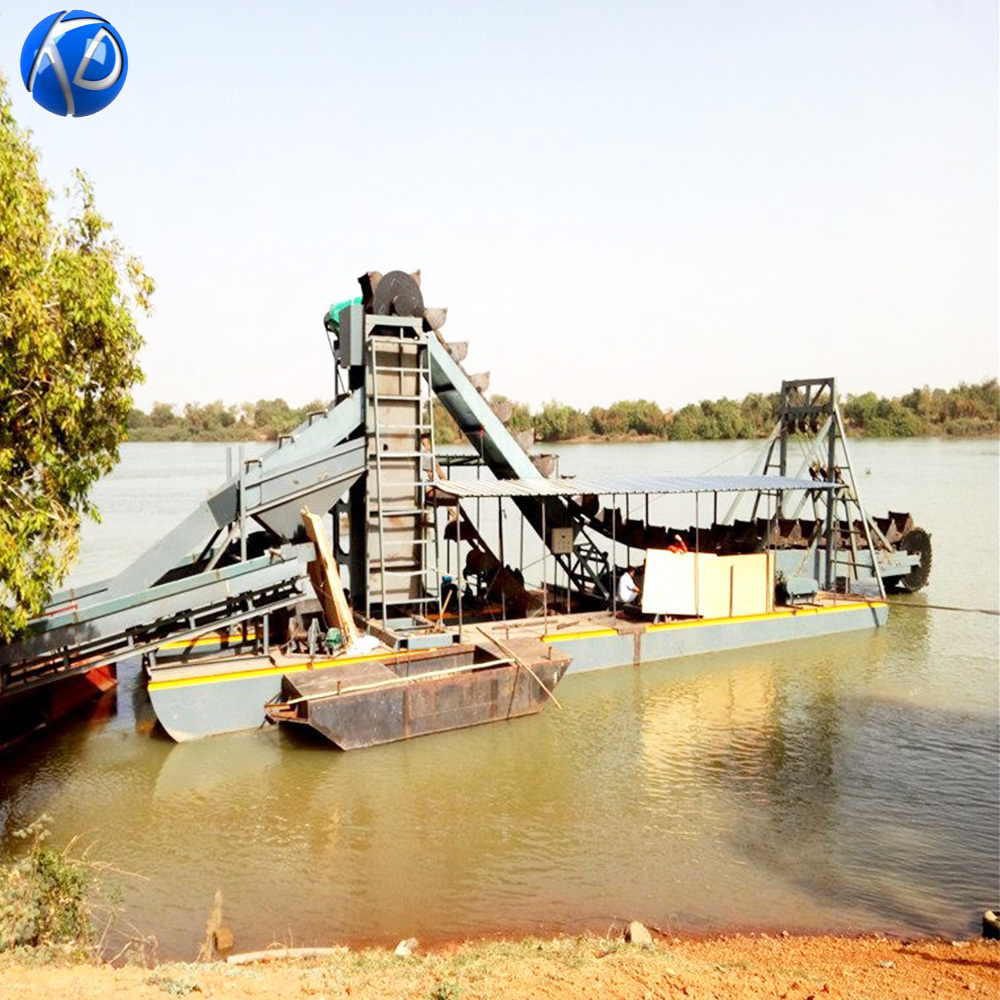

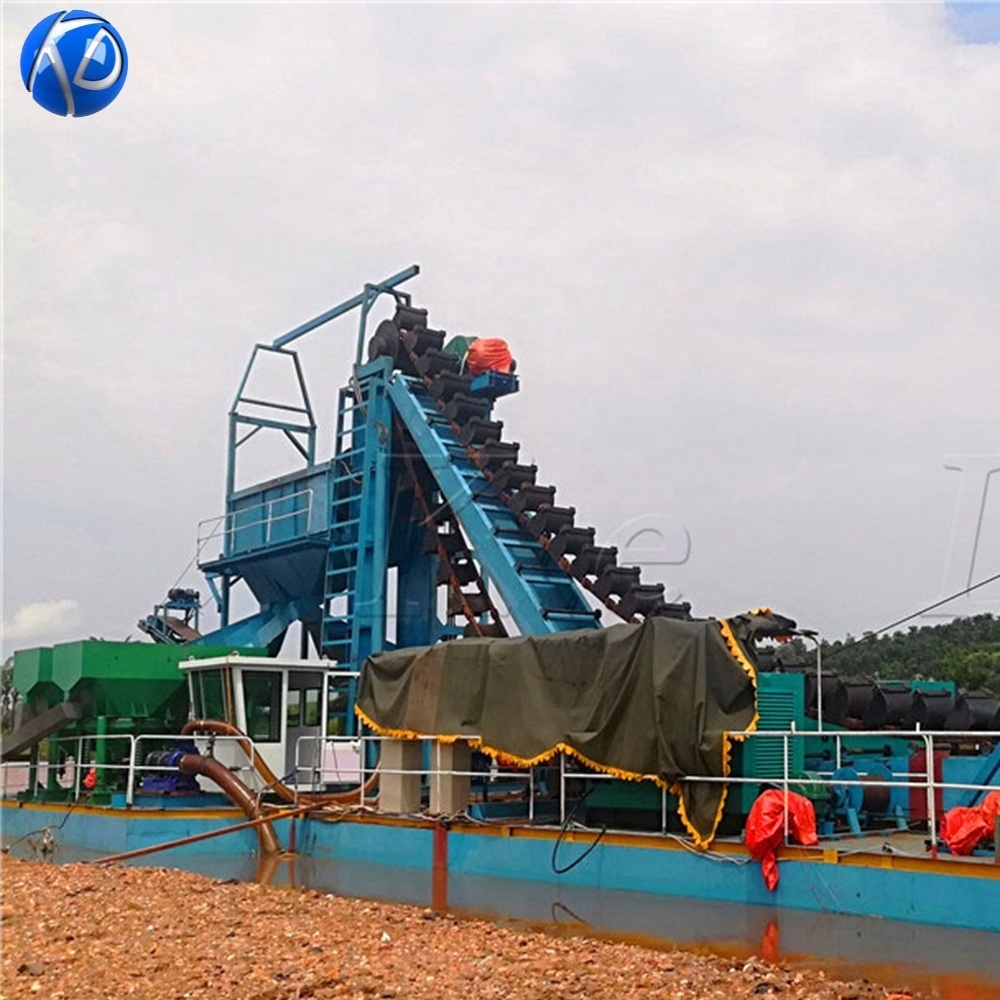

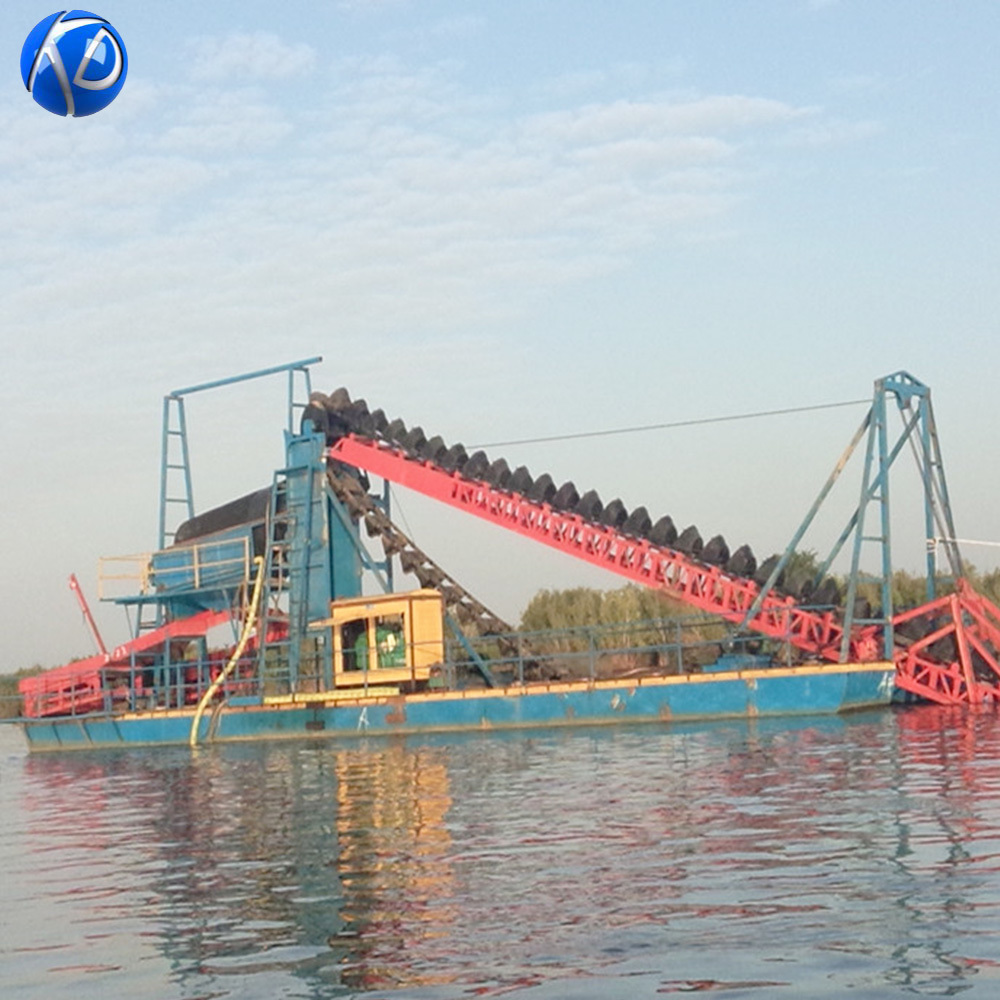

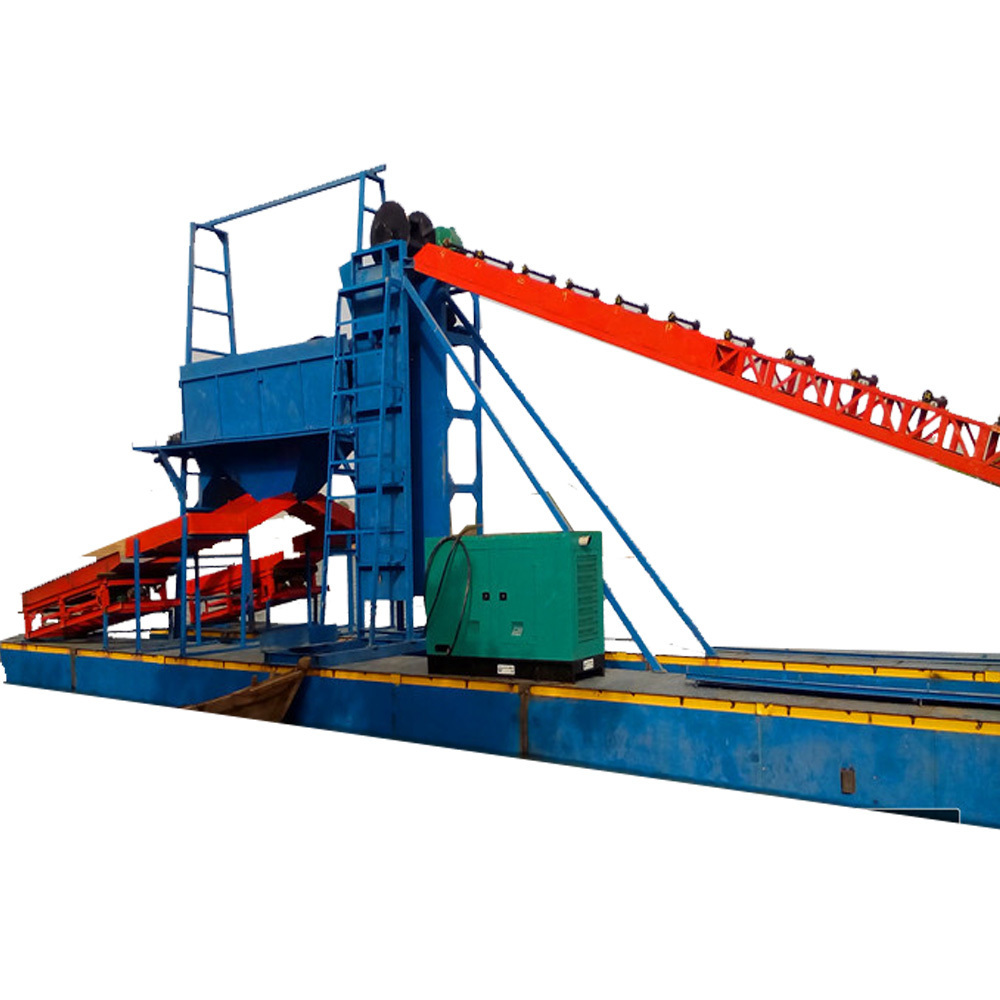

Bucket Chain Gold Dredge Machine 40KG Weight with 300MM Suction Pipeline Diameter
| Place of Origin | Shandong china |
|---|---|
| Brand Name | Keda |
| Certification | CE 9001 |
| Minimum Order Quantity | 1 |
| Price | $150,000/sets >=1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Core Components | Engine, Pump | Type | Bucket Dredger |
| Power Type | Diesel | Dredging Depth | 12 M |
| Draught | 100 Cm | Dimension(L*W*H) | 40*8*6m |
| Weight | 40 KG | Warranty | 1 Year |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Pump Model | 10/8 Inch |
| Water Flow | 800 M3/H | Suction Pipeline Diameter | 300MM |
| Cutter Head Diameter | 950-40MM | Ladder Winches | JC-4000 |
| Swing Winch | JC-4000 | Exported Areas | Africa,Middl East,Southeast,USA,Australia And South American |
| Product Name | Bucket Chain Excavating Gold Dredger | Applicable Industries | Energy & Mining |
| Showroom Location | None | Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year | Condition | New |
| Highlight | 300MM Suction Pipeline Gold Dredge,40KG Weight Gold Dredge Machine,Bucket Chain Gold Dredge Machine |
||
Product Description
Keda Gold Dredge Ship Diamond Ore Mining Dredger Machine
300MM suction pipeline diameter with diesel power type for efficient mining operations.
Product Application
The Chain Bucket Dredger is our flagship product, developed through extensive research and continuous improvements. This advanced sand mining machinery performs extraction, screening, cleaning, and grading simultaneously, producing clean gravel products in a single operation.
Available with diesel or electric power options, it's capable of screening and washing sandy stone materials. Can be integrated with pebble crushers for secondary processing.
Key Advantages
- Exceptional adaptability to various geographical environments
- Simple structure with easy maintenance requirements
- Ideal for river dredging, salt pond mining, and channel development
- Reliable performance with long operational life and low operating costs
- High daily output capacity (500-3000 cubic meters)
- Produces pure, impurity-free sand ideal for construction and cement industries
Technical Specifications
| Model | KD-1 | KD-2 | KD-3 | KD-4 | KD-5 | KD-6 | KD-7 |
|---|---|---|---|---|---|---|---|
| Pontoon Dimensions (m) | |||||||
| Length A | 13 | 14 | 15 | 16 | 17 | 22 | 24 |
| Length B | 14 | 14.5 | 15.5 | 17 | 18 | 20 | 22 |
| Length C | 15.5 | 16 | 16.5 | 18 | 20 | 20 | 22 |
| Width A | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.8 | 1.8 |
| Width B | 1.5 | 1.5 | 1.5 | 1.5 | 1.7 | 1.8 | 1.8 |
| Width C | 1.7 | 1.7 | 1.7 | 1.7 | 1.8 | 1.8 | 1.8 |
| Bucket Quantity | 42-46 | 48-52 | 52-58 | 60-66 | 66-78 | 60-70 | 70-76 |
| Dredging Depth (m) | 4-4.8 | 4-6 | 4-7.5 | 4-10 | 4-12 | 8-14 | 8-16 |
| Output: 60-200 m³/h (adjustable) | |||||||
Product Gallery
Component Details
Engine Parts
Brand: Honda, Kipor, KOHLER etc.
Origin: Germany
World-renowned engine brands providing strong, reliable power for demanding operations.
Dig Parts
Brand: KEDA
Constructed from high manganese steel casting with reinforced wheel outer rings for extended durability.
Bucket Parts
Origin: Germany
Wear-resistant materials with complimentary spare parts included for high-wear components.
Hull Parts
Brand: KEDA
Square buoy design with transverse skeleton structure, welded from thickened ship steel for maximum strength.
Our Services
Pre-Sales Service
- Expert model selection guidance
- Custom product design and process development
- On-site evaluation by our engineers for optimized solutions
After-Sales Service
- On-site installation, adjustment, and testing
- Comprehensive operator training programs
- Engineers remain until full operational status is achieved
- 24/7 technical support availability
Packaging & Delivery
| Specification | Details |
|---|---|
| Size | 12m (L) × 2.5m (W) × 3m (D) |
| Weight | 5 Tons |
| Packaging Details | Standard container packaging with fumigation for European destinations. Custom packaging options available including PE film wrapping. |
About Qingzhou Keda Environment Protection Machinery
ISO9001:2008 certified manufacturer specializing in mining equipment since 2002. Our 20,000 square meter facility houses modern workshops and employs 120 skilled professionals including engineers and technicians.
We combine professional design, competitive pricing, and comprehensive service with patented technologies for superior mining solutions.
Frequently Asked Questions
Is the machine easy to operate for first-time users?
Our engineers provide complete installation guidance and operational training. English manuals and instructional videos are included.
What if I encounter problems after purchase?
We provide free replacement parts during warranty period and lifetime technical support. Our team is available via phone or Skype for immediate assistance.
